Product dimensions:
| Conductor | Insulation | Max.cond
resistance
(Ω/km) | Unit Length
(m)(Ft) |
Section
(mm²) | Construction
(No./mm) | Diameter
(mm) | Nominal Thickness
(mm) | Diameter
(mm) |
| 0.50 | 20/0.18 | 0.95 | 0.78 | 2.51 | 40.1 | 305/1000 |
| 0.75 | 30/0.18 | 1.17 | 2.73 | 26.7 |
| 1.00 | 40/0.18 | 1.30 | 2.86 | 20 |
| 1.25 | 50/0.18 | 1.50 | 3.06 | 14.35 |
| 1.50 | 30/0.25 | 1.60 | 3.16 | 13.7 |
| 2.00 | 41/0.254 | 1.85 | 3.41 | 8.78 |
| 2.50 | 50/0.25 | 2.06 | 3.62 | 7.16 |
| 3.00 | 60/0.25 | 2.30 | 3.86 | 6.5 |
| 4.00 | 56/0.30 | 2.62 | 4.18 | 4.7 |
MYSUN Wire Features :
Certifications:
Since starting production in 2002, MYSUN has passed product authentication, including UL, cUL, VDE, CSA and CCC. Also got ISO9001 quality management system in 2005. In order to provide better service, MYSUN passed ISO14001 environment management system while completing its revision changing of ISO9001 in the year 2010 and successfully obtained IATF16949 certificate in 2015. The complete quality guarantee system and advanced testing equipment provide high class products.
Test Equipment:
"Quality is guarantee for existence" is the guideline that MYSUN always uphold. Advanced manufacturing and testing equipment, selected raw materials, a sound management system, fully guarantee the reliability of the products.
Why choose MYSUN?
1. Full experience of 20 years in manufacturing high temperature cables/wires
2. Strict quality inspection of ISO9001 quality management, ISO14001 and IATF14969 system
3. Certifications for our products including UL, cUL, CSA, VDE,CCC, ROHS, REACH etc.
4. Free samples(in stock)
5. Delivery in one week for your goods
6. Several different payment methods,such as T/T,Western Union and L/C
7. Strong R&D Team to design and test products
8. Easy one-stop purchasing
9. Quick after-sale technical advice and guidance
Shipment:
1. by express
2. by sea
Payment terms:
LC, TT, Western Union, Money Gram and PayPal
Delivery:
Sample order: 1-3 working days
Big order: 5-10 working days
Customized order: 10-15 working days
Product Tags:
|
|

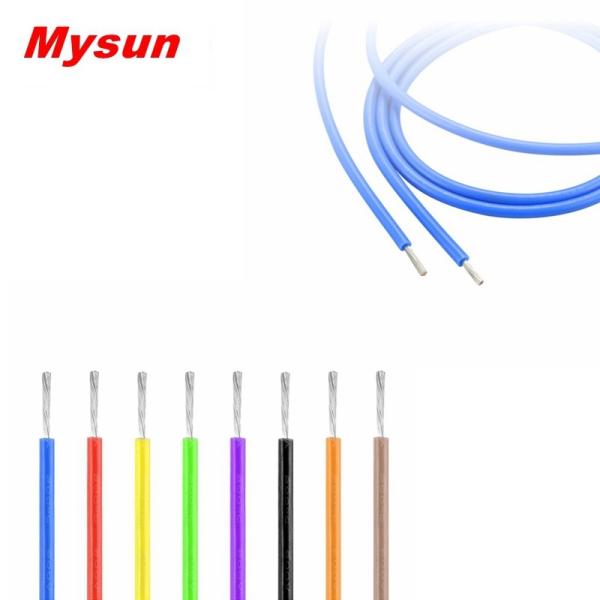

0.75mm UL3512 Silicone Insulated Cable With ROHS REACH Report Images
|
